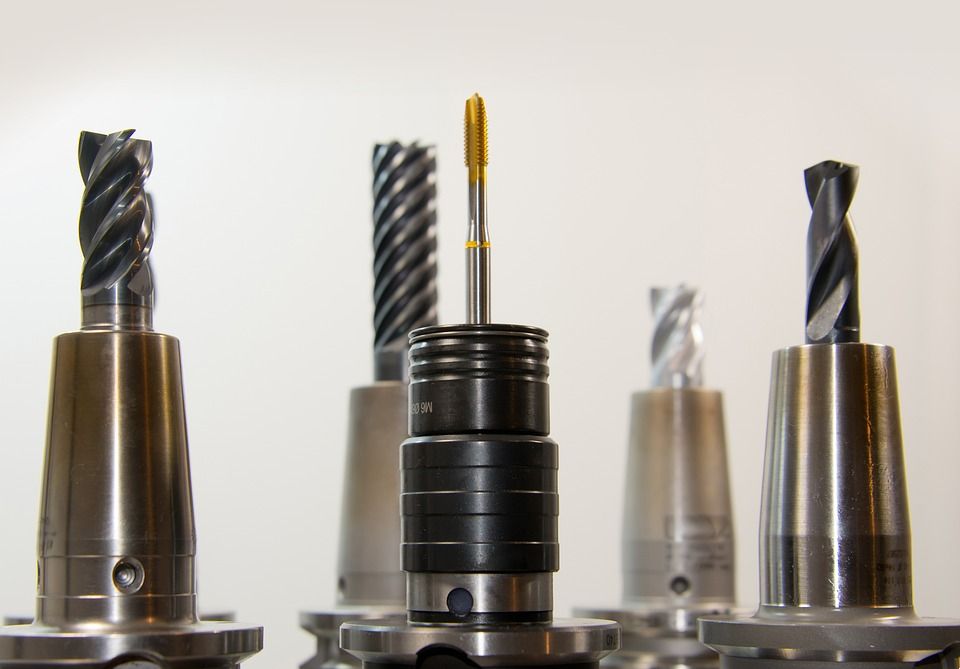

01 Measure key dimensions of the cutting tool, including the length from the tip to the reference surface of the tool shank, the tool radius/diameter, and the blade runout.

02  Check the tool angle parameters, such as the rake angle, relief angle, main deflection angle, and secondary deflection angle.

03  Inspect the appearance of the tools for defects, such as chipping, notches, wear and other issues.

01  Preset compensation parameters allow measurement data to be directly input into the machine tool system or transmitted via a data interface, reducing on-machine trial cutting time.

02  Perform unified reference calibration on the tool magazine tools to ensure dimensional consistency when machining with multiple tools.

03  Some high-end models support tool parameter storage, traceability, and integration with CAD/CAM systems.

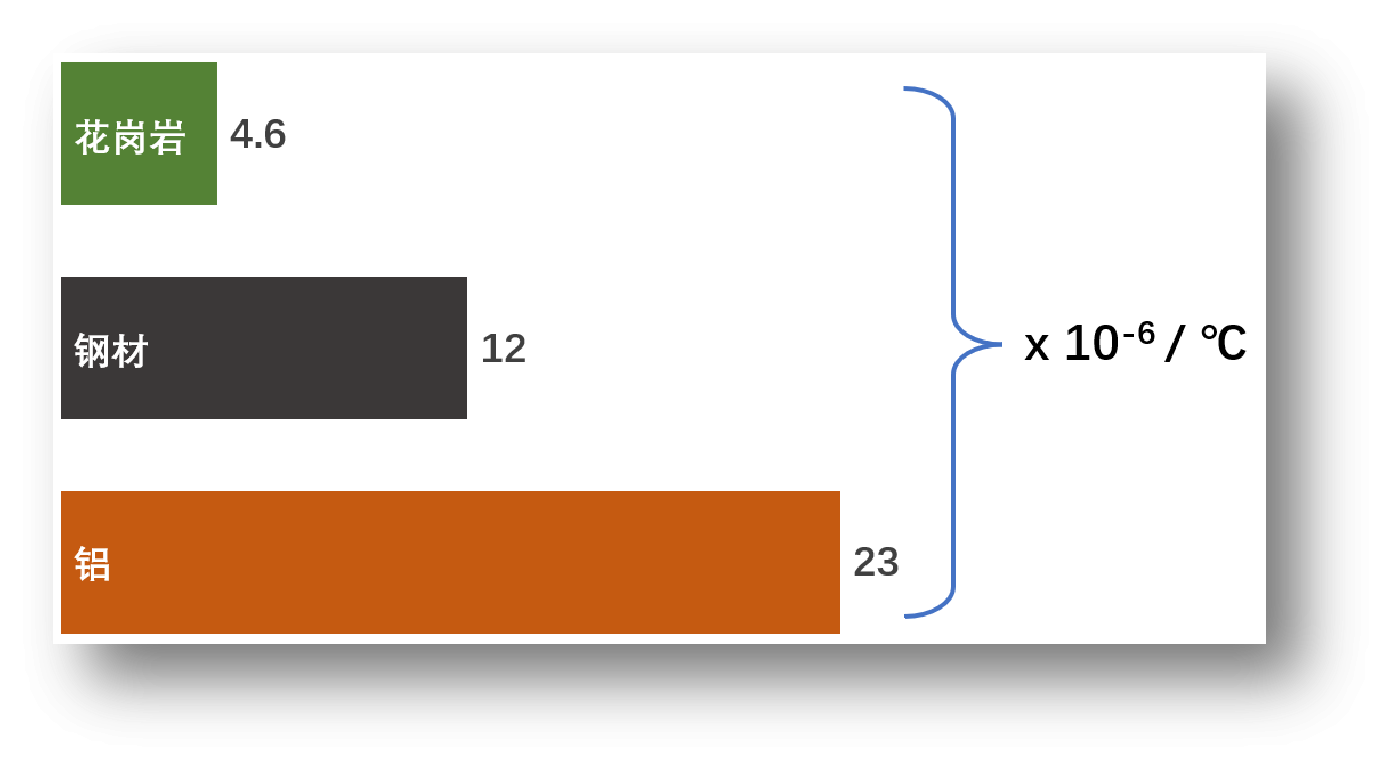

The equipment workbench is made of stable, integral high-quality granite, providing high-precision operational accuracy.

Equipment control system: 2-axis independent manual operation for each axis, using electromagnetic quick buttons for rapid movement, and manual handwheels for slow, precise movement, with two motion modes: 'fast' and 'slow'.

Mega-pixel high-resolution CMOS industrial camera and sensor, providing bright and clear images.

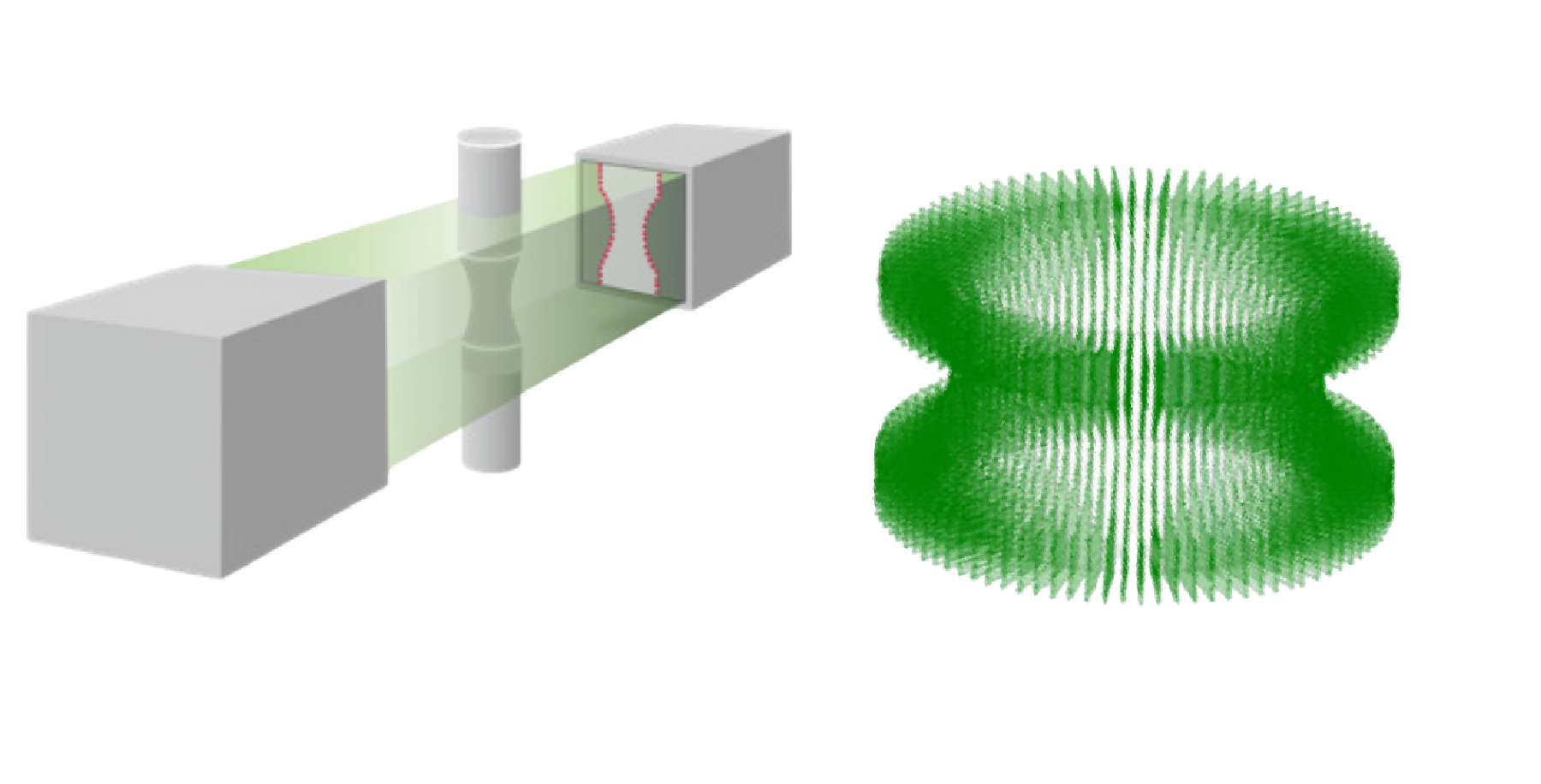

Telecentric flat-field LED transmitted light source, with brightness intensity controllable by programme and capable of point-by-point storage.

Pos-Cam (Smart-Pro) measurement software is dedicated software for tool presetters, featuring powerful measurement capabilities:

·The software includes multiple languages and allows for easy language switching.

·Quickly measure elements such as straight lines, circles, arcs, distances, angles, etc.

·The software features boundary image tracking technology, calculating results in real time by following changes in the arcs or lines of the tool boundary.

·Having a blade alignment tool makes it easy to align the blade.

·Measurement recording function with the largest entity contour, recording the maximum contour boundary of the blade;

·Manual touchscreen operation

·Images can be stored and archived.

·Measurement value reports can be printed on a printer, and the system also supports direct scanning to communicate with the machine tool.

·The software supports secondary development, automated measurement, automated loading and unloading, and barcode scanner systems.

·Windows® operating system and touchscreen computer

·Intuitive and easy-to-use measurement software

·CMOS colour camera

·The calibration unit is integrated into the base

·The quick adjustment device can adjust the X/Z axes separately or simultaneously

·Axis fine-tuning device (X / Z)

·Standard SK50/BT50 spindle

·Various specification conversion kits (optional)

·Spindle 4 x 90° positioning
