As a 'composite' measuring instrument, it is not limited to conventional shaft dimension measurement. Based on an optical shaft measuring instrument, by optionally equipping it with a high-precision white light probe, it can seamlessly achieve non-contact precision measurement of dimensions such as keyway depth and width, offering comprehensive functionality and effectively improving inspection efficiency.

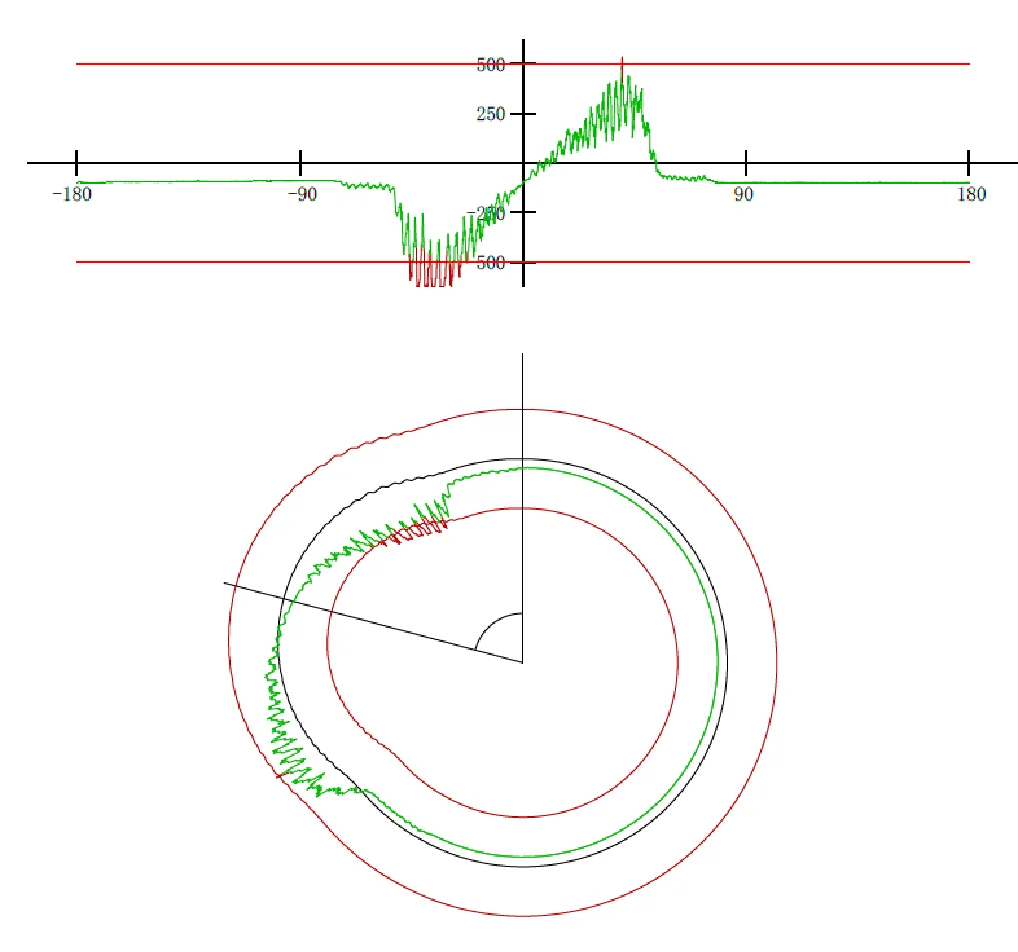

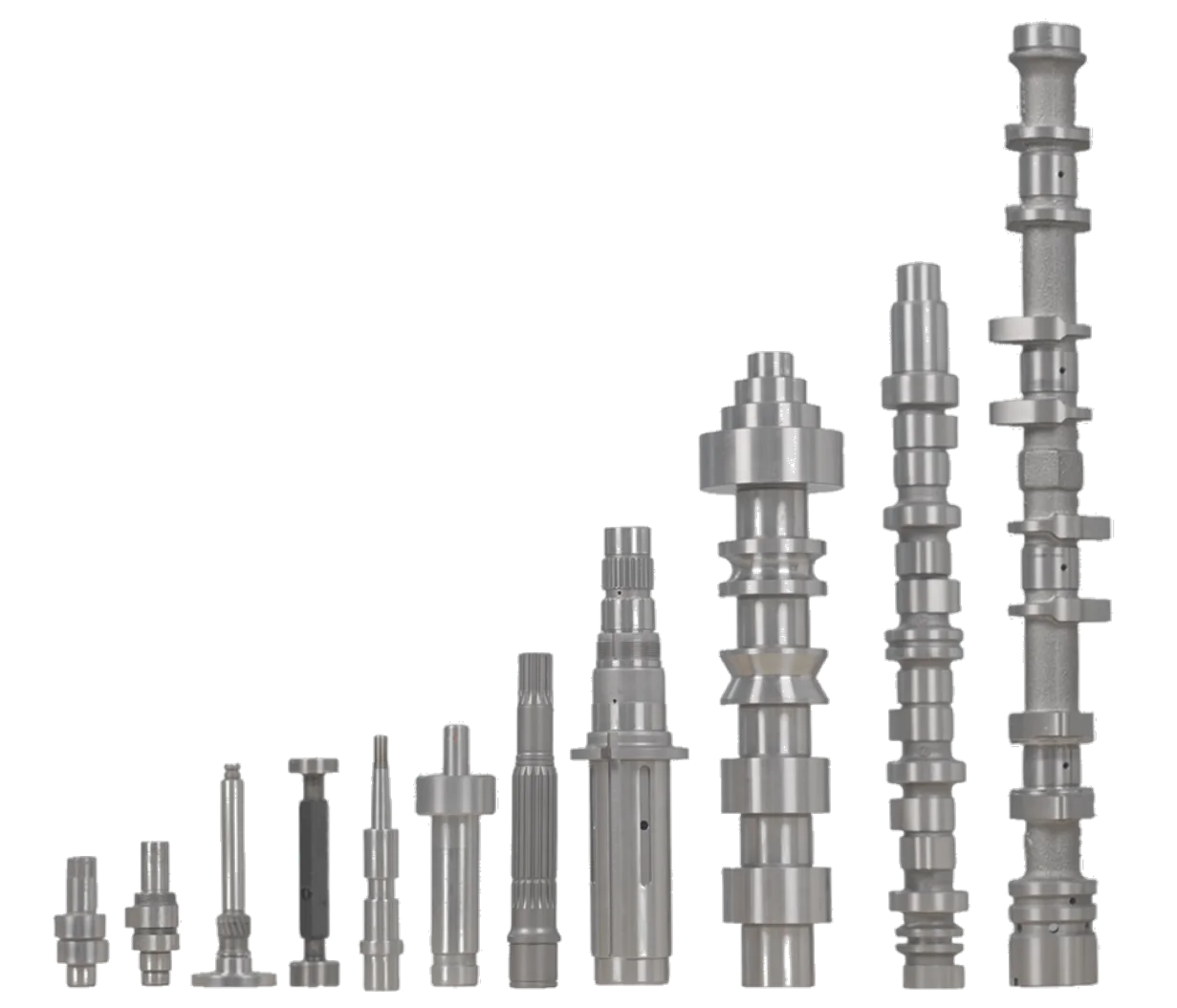

For the precise measurement challenges of the camshaft, a key component, Yuanjie Measurement & Control provides a professional selection solution. By opting for high-precision white light probes, this function can directly replace foreign brand shaft measuring instruments with domestic ones, enabling the measurement of single-lobe and double-lobe cams, and under the premise of ensuring equal or even better measurement performance, it brings the following benefits to customers:

Better value for money: Significantly reduce equipment procurement and maintenance costs.

Faster service response: Localised technical support and services with peace of mind.

More flexible customisation capability: can be deeply adapted according to the customer's specific process requirements.

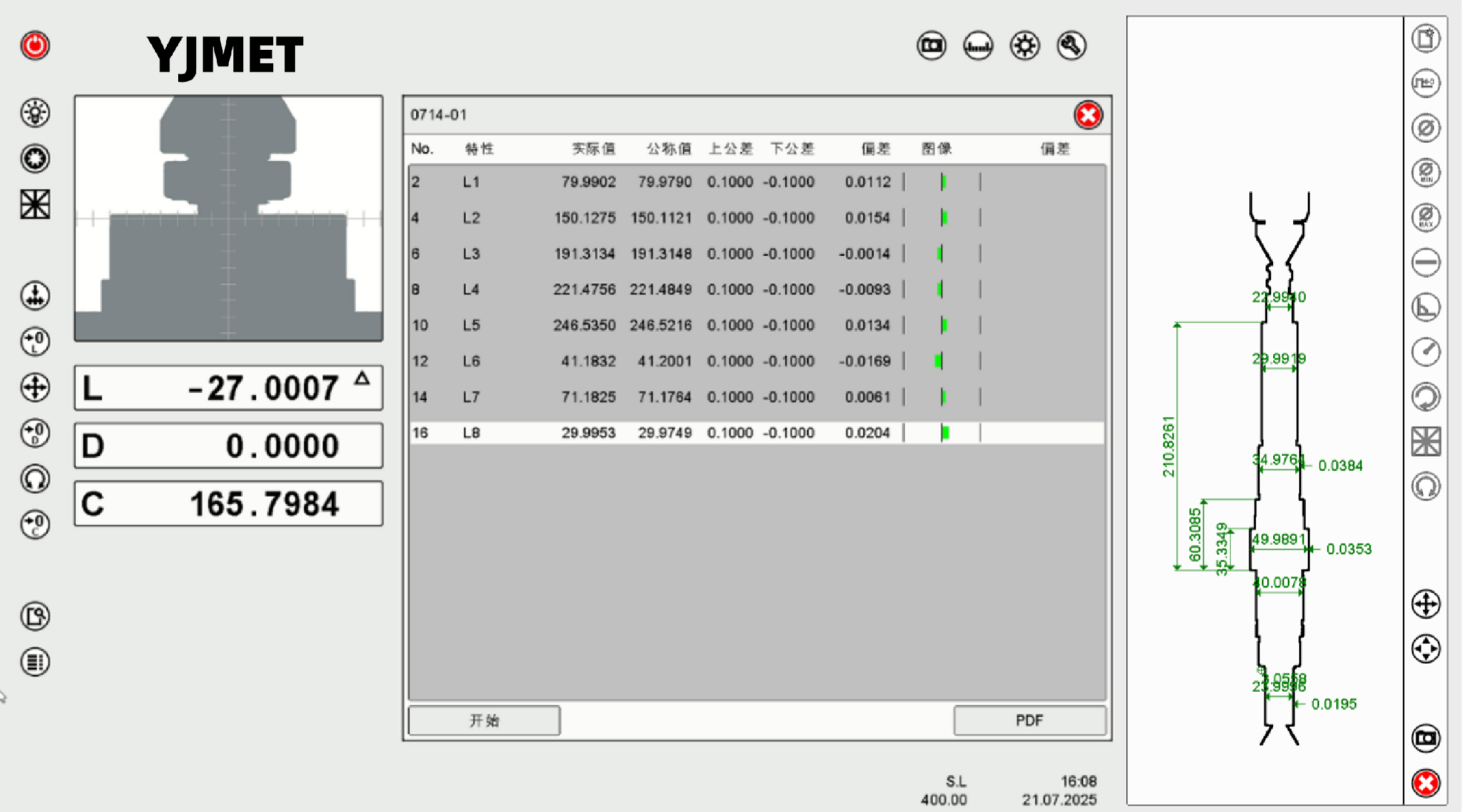

Haycise measurement software is specialised software for shaft measuring instruments. It is powerful and easy to use, capable of performing excellently in a variety of complex measurement tasks, making it an ideal tool for improving production and inspection efficiency. Its interface is simple and intuitive, easy to learn and operate. It uses advanced algorithms to ensure high accuracy and reliability of measurement results.

Clean interface: The interface design is optimised for shaft measurement tasks, with commonly used functions clearly visible and graphical operations intuitive and easy to understand.

Powerful functionality: Supports comprehensive measurement of shaft geometric parameters such as diameter, roundness, straightness, and concentricity.

High-precision algorithms ensure micrometre-level measurement accuracy and automatically compensate for environmental interference.

Compatible with multiple sensors, meeting different measurement needs.

Easy to operate: One-click measurement, intelligent guidance and customised processes make measuring more efficient and smooth.

Multilingual interface, convenient for users worldwide.

Intelligent and efficient: Rapid measurement and smart diagnostic functions significantly enhance testing efficiency.

Optional length and diameter standards, with automatic calibration using software.

Optional barcode scanner can be equipped to quickly scan and input the QR code material number and automatically select the measurement program.

Optional high-precision accessories include three-jaw chucks, magnetic tables, and composite centres.

Optional workpiece automatic clamping centre feature (automatic tailstock), suitable for automated loading and unloading to automatically clamp workpieces.

Measure length:100-1600mm

Measure diameter:0-250mm

Measurement accuracy: starting from 1.0μm

According to customer requirements, select and configure optical sensors to measure keyway depth and width, camshaft, and other parameters.
