Integrate the white light probe into the shaft measuring instrument to achieve precise co-ordinate calibration.

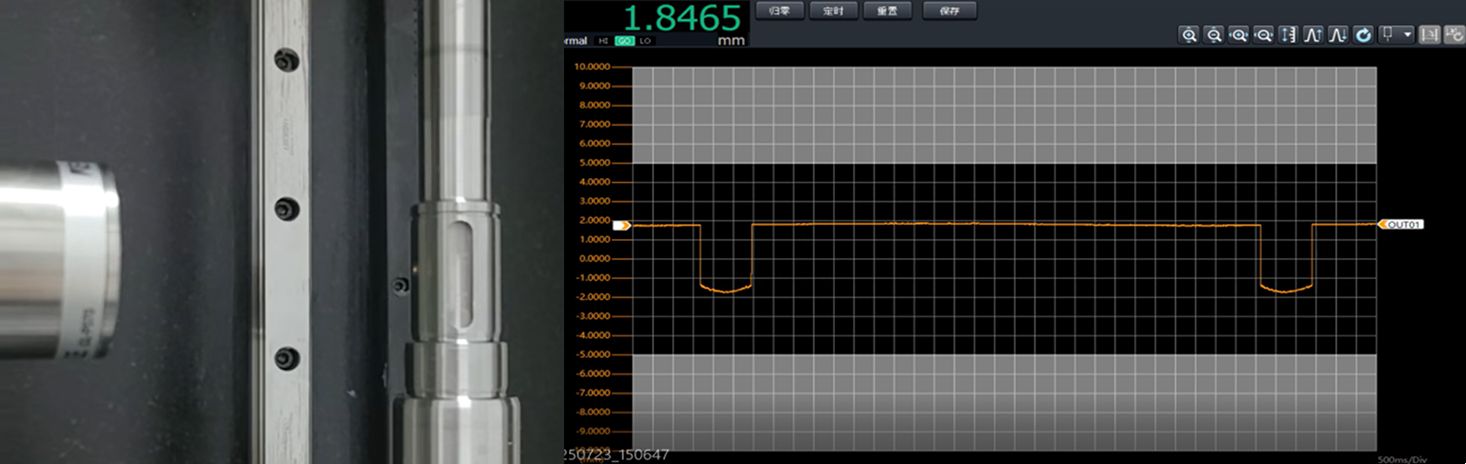

Integrate a white light probe into the shaft measuring instrument to achieve precise co-ordinate calibration. While the workpiece rotates, rapidly and accurately record the rotation angle and radius values to generate polar coordinates of keyways or gear profiles, thereby accurately calculating the keyway width, depth, and height.
