Products
Shaft measuring instrument
Tool presetting instrument/tool setting instrument
Gear Measurement
Optical thread measuring instrument
Optical shaft measuring instrument
The YSM optical shaft measuring instrument is a pure optical measuring device specifically developed by Yuanjie Metrology (Qingdao) Co., Ltd. for rotational parts. It is primarily used for measuring the geometric dimensions and form and position tolerances of shaft-type components, such as automotive transmission shafts, precision bearings, aerospace parts, etc. It can assist customers in safely and quickly measuring the geometric dimensions of shafts and turning parts of different lengths and diameters under all conditions and environments.

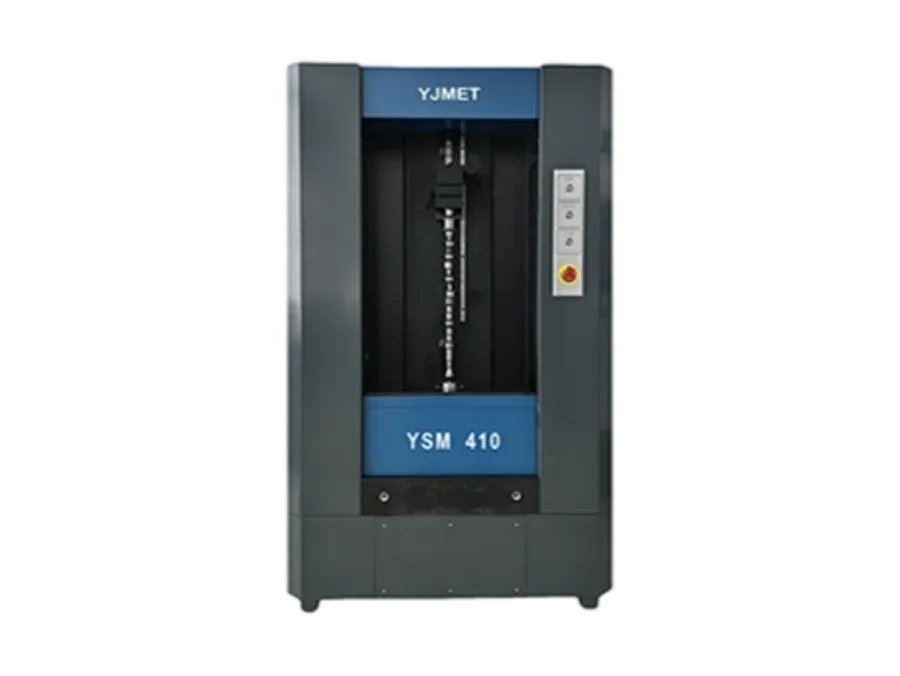

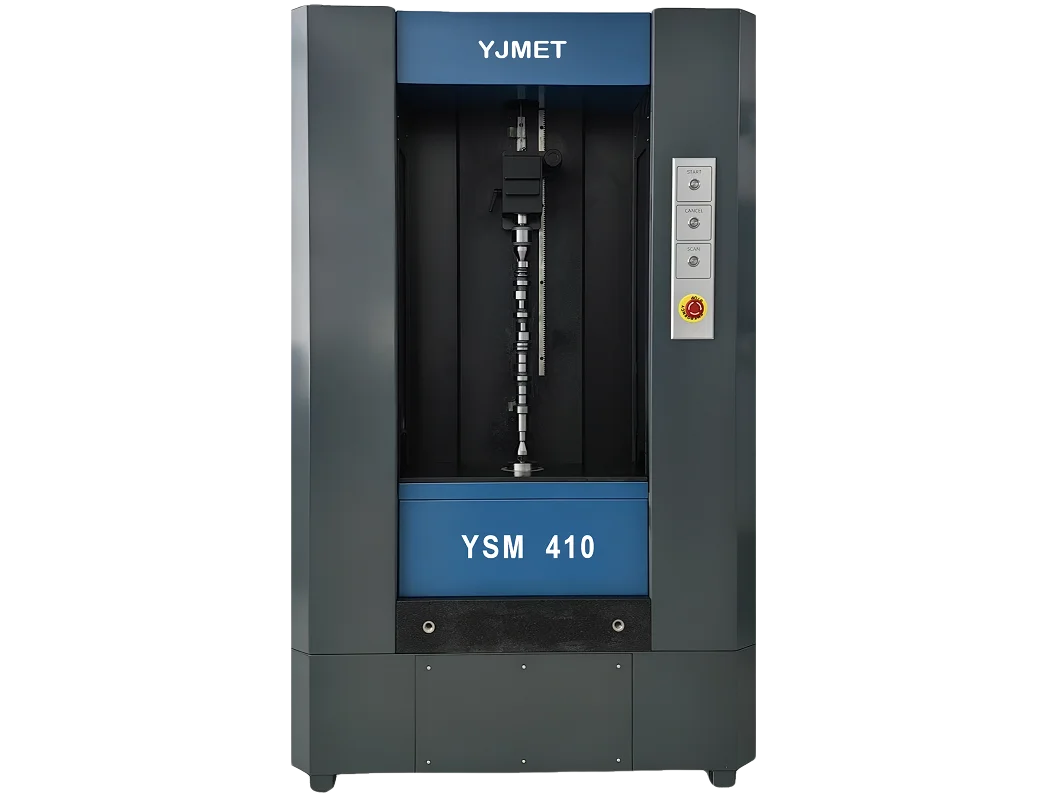

Composite shaft measuring instrument
Whether in the automotive or aviation sectors, tool machining or turbine and gearbox manufacturing, medical engineering, or calibration laboratory operations, precise measurement of shafts, precision turned parts, or rotating components is indispensable. All functions of the YSM composite shaft measuring machine are developed based on user requirements, and its modular design can be configured according to different user needs. It features high accuracy, good stability, and high measurement efficiency, making it the preferred choice for users aiming to continually advance, improve, and achieve
Horizontal axis type measuring instrument
Depending on different customer requirements, Yuanjie Measurement and Control can design and provide horizontal shaft measuring instruments, capable of measuring workpieces up to 4000mm in length and 280mm in diameter. The company's series of horizontal shaft measuring instruments can help customers measure safely and quickly under all conditions and environments, and this intelligent machine meets the most stringent customer requirements with outstanding accuracy, speed and efficiency.

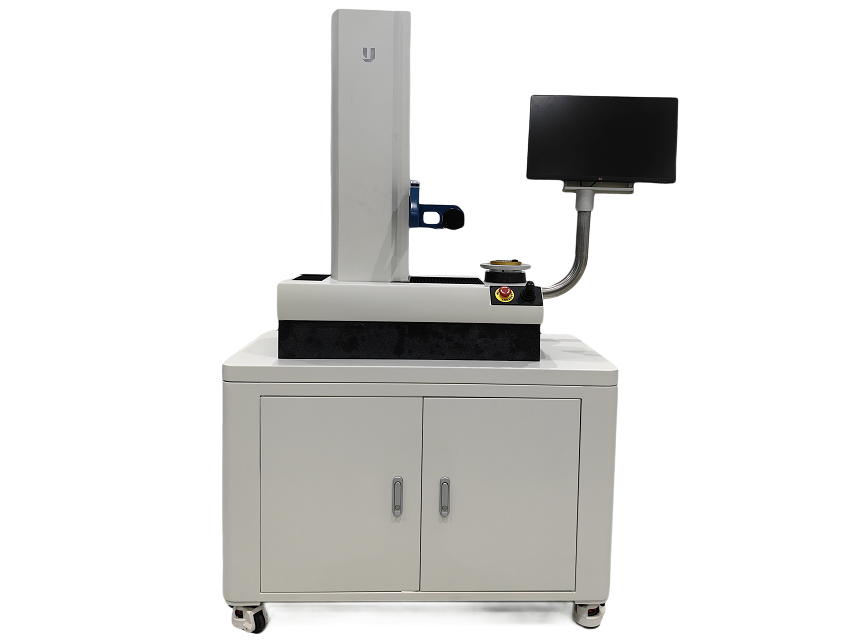

Manual tool presetter/tool setter
The YTM 500M series tool presetting instrument features high precision, high reliability, reasonable structural design, attractive appearance, easy operation, and convenient maintenance. Its outstanding performance results from the solid granite instrument base, high-quality optical system, and user-friendly measurement software used in the instrument. The machine is driven by electromagnetic X and Z axes and comes with measurement programming software. Therefore, it can be used for measuring the coordinate dimensions of precision tools such as external diameter, angles, arcs, maximum profile,
Automatic Tool Presetter/Tool Setter
Relying on the founding team's nearly 20 years of experience in developing German measurement systems, Yuanjie Measurement & Control has independently developed the high-performance tool presetter YTM 500A. With technical support from R&D centres in both Germany and Qingdao, this tool presetter achieves measurement accuracy, efficiency, and stability comparable to leading foreign equipment, and can accurately perform pre-setting and inspection of core parameters such as tool length, radius, and angle, making it suitable for high-precision machining needs in aerospace, automotive manufacturing,

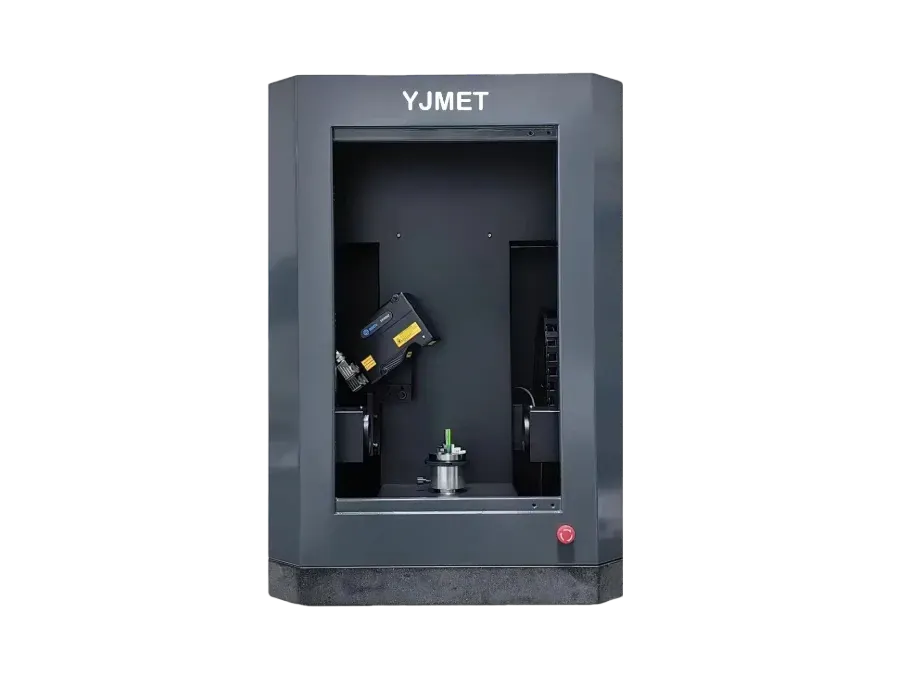

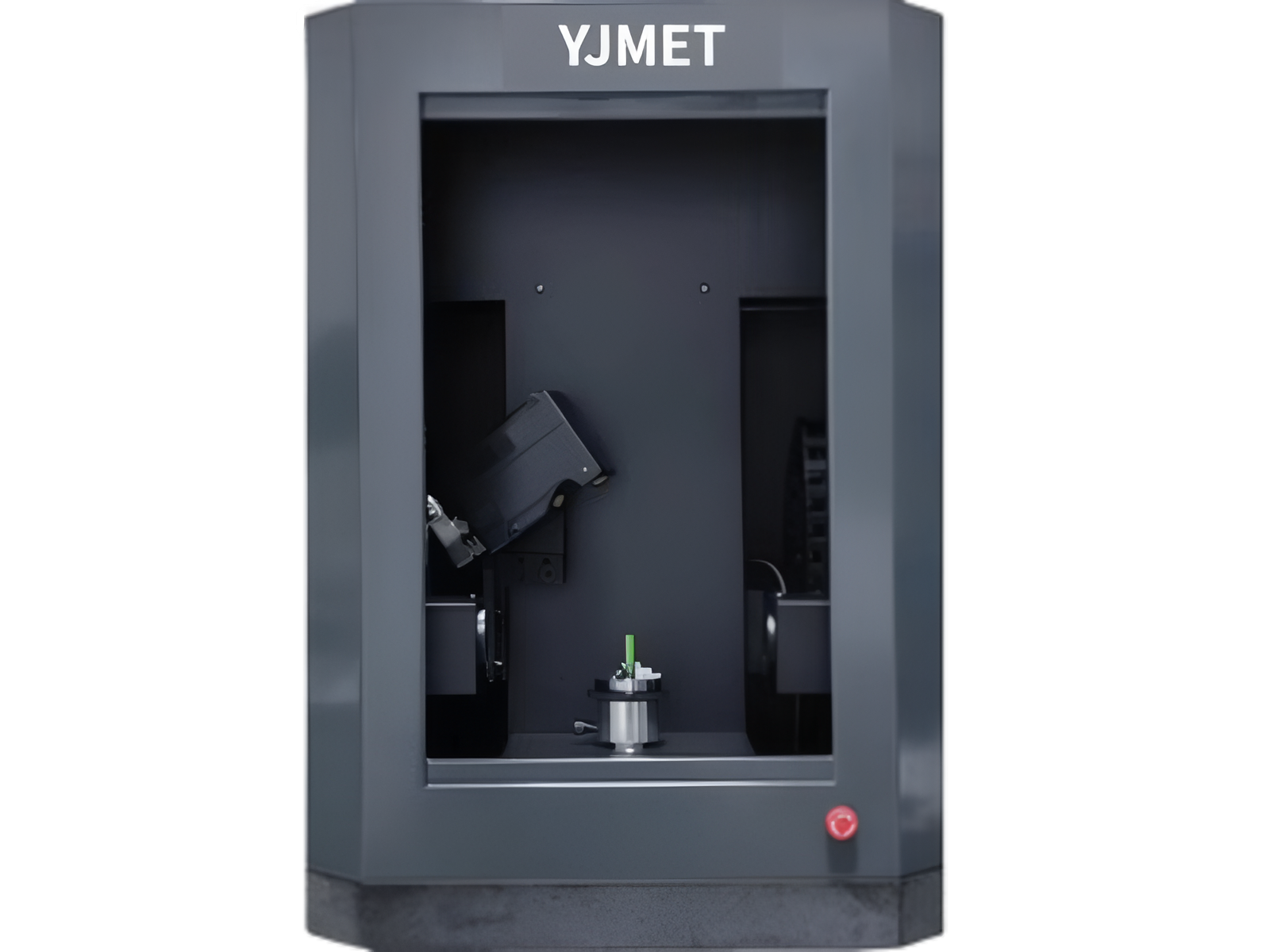

Optical Thread Measuring Instrument
Developed jointly by Chinese and German research teams, combining localised domestic engineering and application implementation, it creates the country's first purely optical thread measuring instrument through unique design and core technological advantages, used for non-contact, high-precision measurement of various external thread parameters, with extremely fast measurement speed, capable of completing multiple parameter measurements within seconds.
Solution
-
Static dimensional measurement
Quick measurement of static dimensions such as length, radius, angle, diameter, and taper can be completed within seconds.
-
Dynamic dimension measurement
Runout, roundness, concentricity, cylindricity, straightness, parallelism, perpendicularity
-
Cam and eccentric wheel
The key measurement indicators of the camshaft directly determine the timing and sealing of the engine's valve operation.
-
Thread
Can quickly measure different thread features in a few seconds, such as major diameter, minor diameter, pitch diameter, pitch, etc.
-
keyway
Integrate the white light probe into the shaft measuring instrument to achieve precise co-ordinate calibration.
-
Automation and online measurement
Yuanjie Metrology Possesses independent design capabilities for fully automated measurement solutions, capable of providing one-stop customised solutions from requirement analysis to implementation delivery, catering to the measurement needs of different industries and various types of workpieces.
-
Customisation
Extra-large size, roughness, inner diameter measurement, internal thread measurement
Provider of high-end precision measurement solutions
-- Making measurement simpler, more precise, and more intelligent
20
YEARSServe numerous well-known clients with comprehensive professional services and industry-leading precision measurement solutions
