Extra-large size

Thanks to its modular design and a wide range of accessory options, the YSM shaft measuring instrument can be fully customised according to your shaft measurement needs, with lengths of up to 4000mm and diameters up to 280mm.

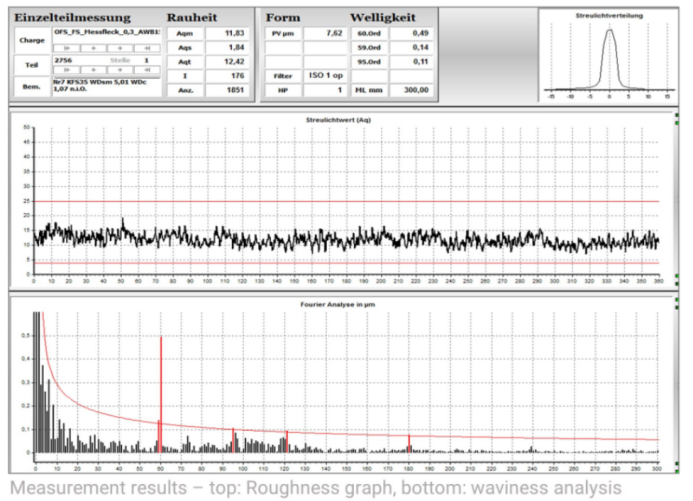

Roughness

Integrated surface roughness detection module, capable of measuring roughness at the nanometre scale.

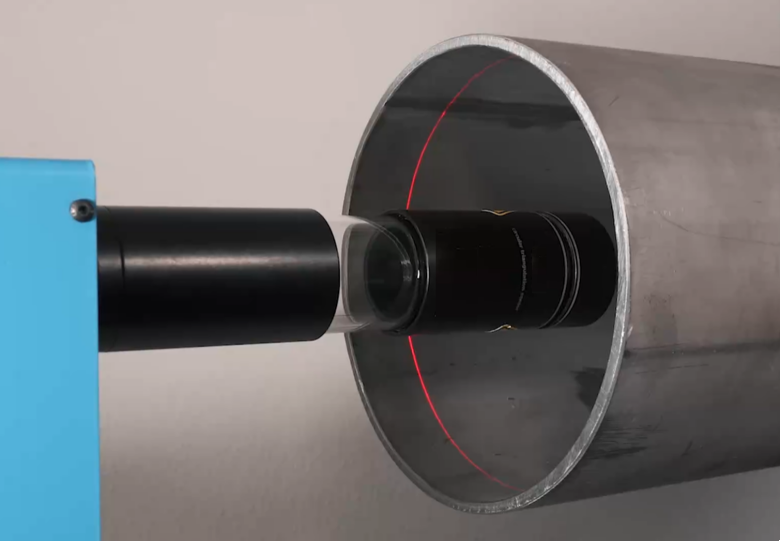

Inner diameter measurement

The laser measurement sensor accurately measures the internal geometry of holes, pipes, containers and other cavities. The radial laser scans the internal surface of the cavity in 360° geometry, enabling rapid and precise scanning of the interior, achieving complete 3D measurements of the internal diameter, ovality, defects and more (for inner diameters not less than 60mm).

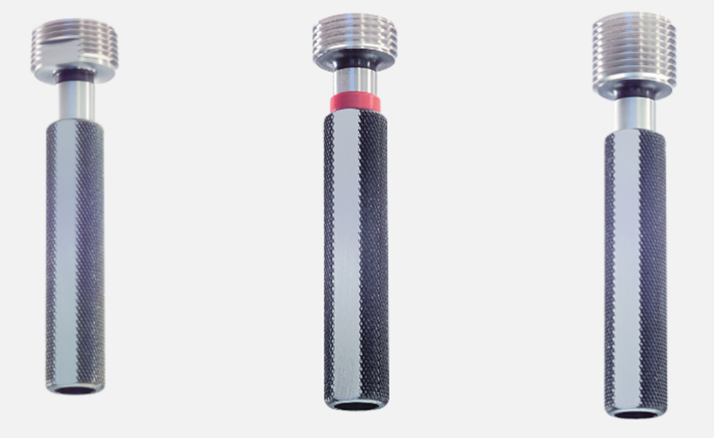

Internal thread measurement

 Equipped with an automated thread measurement probe and a standard thread gauge holder, using a torque measurement method, suitable for M5-M20 left and right threads, supporting a maximum measurement length of 50mm, capable of gauge accuracy verification, internal thread passability testing, and thread depth measurement, suitable for detecting internal threads at shaft ends and other locations.
